About 3 Phase Pad Mounted Transformer
The 3 phase pad mounted transformer, also known as pad type distribution transformer, integrate the transformer core, windings, high-voltage load switches, fuses and other auxiliary equipment in a sealed enclosure. This fully insulated and sealed design ensures safety, reliability and ease of operation while requiring minimal maintenance.
These transformers are designed to meet the needs of various applications in commercial centers, industrial parks, residential complexes, streets, airports, ports, stations and densely populated urban areas. They are ideal for providing reliable power distribution in areas where space constraints or aesthetic considerations make above-ground installation impractical.
Pad mounted transformers are available in a variety of voltage ratings and capacities to meet different load requirements. They are flexible to install and can be easily integrated into existing electrical infrastructure without the need for additional buildings or structures.
Additionally, these transformers feature advanced protection mechanisms such as over-current protection, temperature monitoring and fault detection systems to ensure safe and uninterrupted power supply. They are also equipped with remote monitoring capabilities, allowing operators to monitor performance and diagnose problems remotely.
In addition to its functionality, pad transformers are designed with environmental sustainability in mind. They are made from corrosion- and degradation-resistant materials, ensuring long-term durability and minimizing environmental impact.
Since the 1980s, 3 Phase Pad Mounted Transformer has been widely used in distribution systems in Europe and the United States. Especially in the United States, this type of box transformer accounts for 80%-90% of distribution transformers.
If you need to purchase a 3 phase pad mounted transformer, please contact us immediately. EverNew is a professional pad mounted transformer manufacturer
Click me!
Who Are The 3 Phase Pad Mounted Transformer Manufacturers?
In the field of 3 Phase Pad Mounted Transformer, some of the world’s leading manufacturers include ABB, Siemens, Schneider Electric, Eaton and GE Grid Solutions, among others. Known for their expertise in electrical engineering and power distribution solutions, these companies offer an extensive product range to meet the diverse needs of customers across industries across the globe.
EverNew Transformer is a professional 3-phase pad-mounted transformer manufacturer with over 500 employees. We specialize in the production of pad-mounted transformers from 50KVA to 3750KVA. Our products are widely supplied to the North American market, especially the US market. We are committed to providing high-quality, reliable and efficient power distribution solutions to meet the needs of our customers.
EverNew Transformer has various professional certifications such as UL and CE, as well as SGS test reports. We continuously strive to improve product quality and performance to ensure compliance with international standards and provide customers with safe and reliable power transformers.

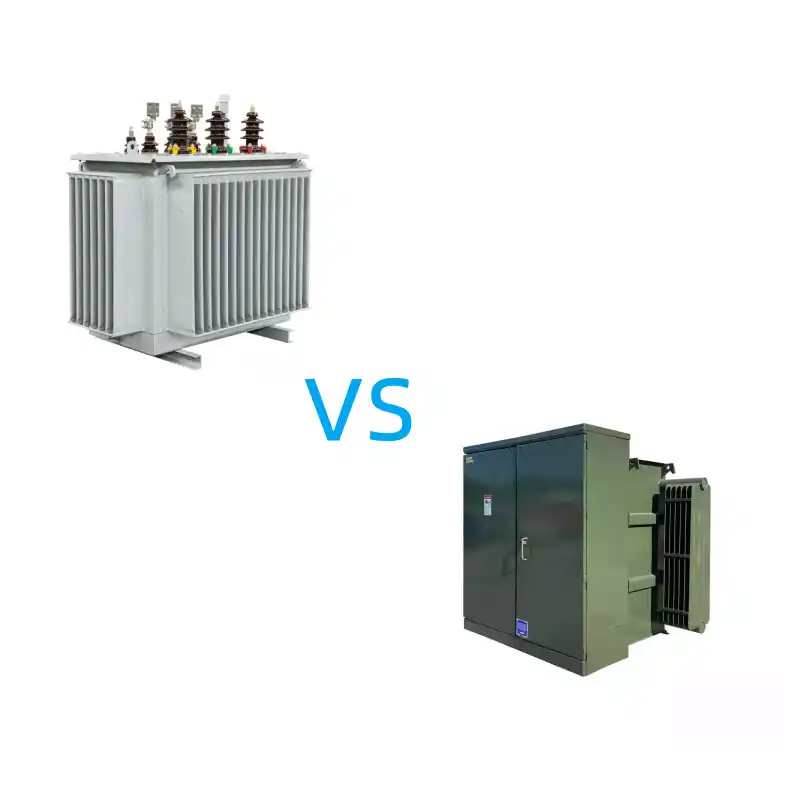

Differences Between Pad Mounted Transformer and Conventional Oil-Immersed Transformer
Three phase pad mounted transformer are power transformers that are based on ordinary oil-immersed transformers and combine corresponding auxiliary equipment such as plug-in fuses, backup fuses, tap switches, loop load switches (2/4 loops), and low-voltage distribution devices. The rated AC frequency is 50Hz/60HZ, the maximum operating voltage is 35KV, and the capacity is 25KVA-3750KVA.
Pad-mounted transformer offer many benefits to users, and this type of power transformer saves owners a lot of energy and brings environmental benefits. Greater efficiency not only extends the life of pad-mounted transformers, but also provides cost savings to homeowners in the form of lower energy bills and reduced cost of ownership.
EverNew Transformer wholesales pad mounted transformer and oil-immersed transformer, choose the best transformer according to your purpose

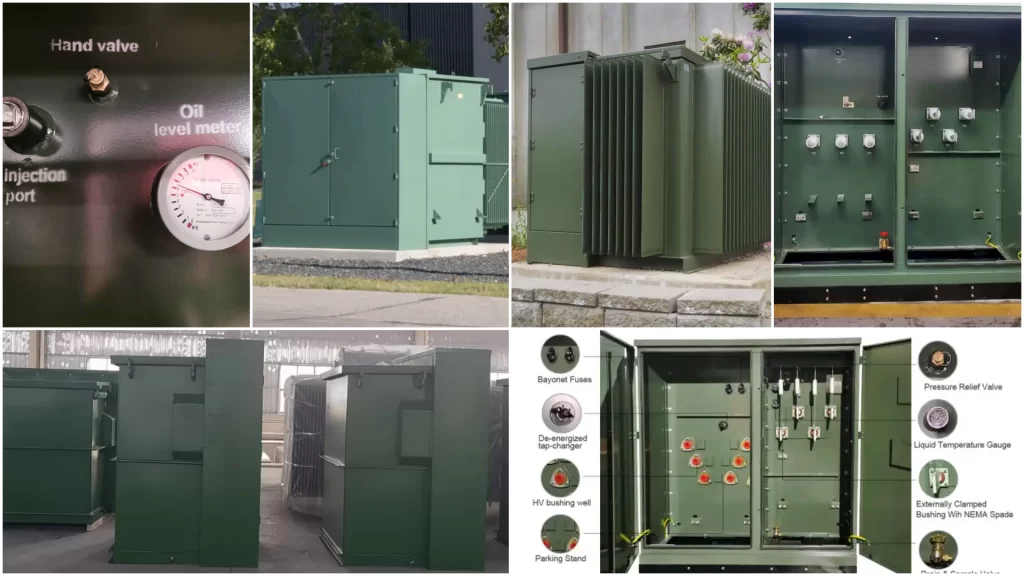

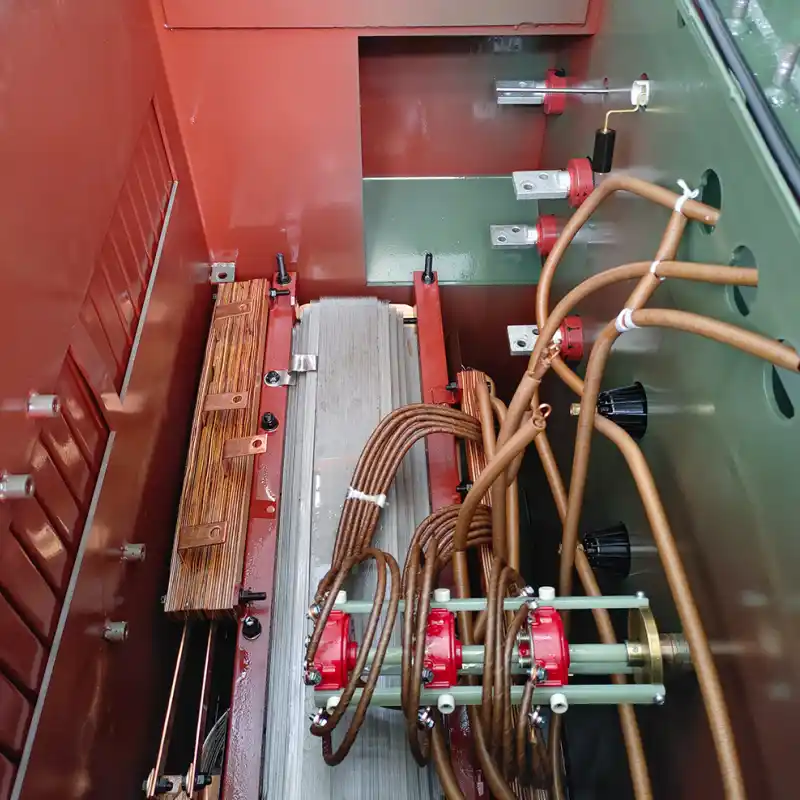

What’s inside the 3 Phase Pad Mounted Transformer
Generally speaking, pad mounted transformer mainly have IEEE standards and CSA standards, but no matter which implementation standard, the main structure of pad mounted transformer is the shell, wiring and internal components
Of course, you don’t have to worry about the internal accessories. There won’t be much difference whether the pad mounted transformer is CSA standard or IEEE standard. The main accessories are as follows
- Lifting Lugs: Used for installation and handling of the transformer.
- Parking Frame Brackets: Supports for the parking frame.
- Tank Cover: Covering for the transformer tank.
- Low Voltage Bushings: Bushings connecting the low voltage winding.
- Vacuum Pressure Gauge: Monitors the vacuum and pressure inside the transformer.
- Identification Labels: Labels indicating transformer model, capacity, etc.
- Anti-condensation Material: Material preventing condensation inside the transformer.
- High Voltage Bushing Well: Well containing the high voltage bushings.
- Grounding Rod: Metal rod for grounding the transformer.
- Nameplate: Metal plate with important transformer information.
- Padlockable Door: Door that can be locked with a padlock.
- Grounding Strap Copper: Copper strap connecting the transformer to the ground.
- Drain Valve: Valve for draining internal transformer oil.
- Filling Plug: Plug for adding insulation oil to the transformer.
- Pressure Relief Valve: Valve releasing pressure when internal pressure is high.
- ELSP Fuse: Fuse protecting against current overload.
- Bayonet Fuse: Fuse installed in the transformer.
- Four Position Load Break Switch: Switch for disconnecting and connecting loads.
- LB Switch Nameplate: Nameplate with switch information.
- Tap Changer: Switch for adjusting transformer output voltage.
- Dust Cap Insert: Cap protecting interface from dust.
- Temperature Gauge: Measures transformer temperature.
- Oil Level Gauge: Measures insulation oil level.
- Sudden Pressure Relay: Detects and protects against sudden pressure changes.
You can safely purchase various pad mounted transformers produced by EverNew. We will provide a detailed accessories list,
Learn more about for free：1500 Kva Pad Mounted Transformer
3 Phase Pad Mounted Transformer Main Applications
Digital Currency
Cryptocurrency mining farms require a large amount of electricity to power the operation and maintenance of mining rigs. As these farms are often located in remote or rural areas, the power supply may be unstable or insufficient. 3 phase pad mounted transformer can be installed near the mining farm to step down and distribute power, providing reliable electrical support and ensuring the smooth operation of mining rigs.
Click me!Computing Power Center
In data centers, 3-phase pad-mounted transformers play a crucial role by converting high-voltage electricity from the grid into low-voltage electricity suitable for data center operations, ensuring stable power supply and load balancing. These transformers ensure that data centers can continue running even in the event of a primary power system failure and support data center operations through safety features and efficient use of space.
Click me!Renewable Energy
In the field of solar and wind energy, three-phase disk transformers play a key role in power conversion and transmission, ensuring stable power distribution. They enable efficient transmission from solar and wind farms to the grid, thereby enhancing grid stability. The transformers also support integration with battery storage and microgrid systems, promoting sustainable energy solutions. Overall, they are critical to driving the adoption of renewable energy.
Click me!
Business Center
In commercial settings, 3 phase pad mounted transformers are crucial for efficient power distribution, ensuring stable electricity supply for lighting, HVAC, and computers. Installed near buildings, they provide reliable power, including backup systems for uninterrupted operations during outages. They also facilitate seamless power distribution within commercial complexes, supporting business continuity.
Click me!Transportation Hubs
In transportation hubs such as airports, railway stations, and ports, 3 phase pad mounted transformer are crucial. They ensure stable power for ground operations, including aircraft boarding, ground handling and lighting. At railway stations, they power signals, lighting and train equipment. Ports rely on them for crane operations, lighting, communications and security. These transformers are critical for reliable power, smooth operations and hub safety.
Click me!Rural and Agriculture
In rural and agricultural settings, where reliable electricity access may be limited, 3 phase pad mounted transformers play a crucial role. They facilitate the distribution of electricity from the grid to power essential farm operations, such as machinery, irrigation pumps, and barn lighting. These transformers enable farmers to carry out tasks efficiently, contributing to increased crop yields and agricultural productivity.
Click me!
Industrial Applications
3 phase pad mounted transformer are crucial for powering production equipment, lighting, heating, and cooling systems. They ensure reliable power supply, minimizing downtime and production costs. Additionally, these transformers integrate electrical equipment into automation and control systems, improving efficiency.
Click me!Educational Institution
3 phase pad mounted transformer play a vital role in providing stable electricity supply for buildings, classrooms, laboratories, and other facilities. They support the operation of lighting, HVAC systems, scientific equipment, and IT infrastructure, ensuring smooth teaching, research, and facility maintenance activities.
Click me!Medical institution
3 phase pad mounted transformer are important components to ensure reliable power supply. Transformers provide stable power to medical equipment, including surgical instruments, patient monitoring systems and life support equipment. Also supports the operation of hospital lighting, HVAC systems and other critical infrastructure.
Click me!3 Phase Pad Mounted Transformer Routine Maintenance
- Visual Inspection: Regularly check for damage, leaks, and corrosion.
- Fluid Level Monitoring: Ensure proper fluid levels are maintained.
- Bushings and Connectors: Inspect and tighten to maintain electrical connections.
- Cooling System: Check cooling components for cleanliness and proper operation.
- Grounding System: Verify the integrity of grounding connections.
- Protective Devices: Test and calibrate relays and fuses.
- Temperature Monitoring: Utilize sensors to monitor internal temperature.
- Cleaning: Keep the exterior clean to prevent dirt buildup.
- Painting: Touch up paint to prevent rust and corrosion.
- Documentation: Maintain records of maintenance activities for future reference.
3 Phase Pad Mounted Transformer Load Loss
The typical load loss values for 3-phase pad-mounted transformers can vary depending on factors such as transformer rating, design, and manufacturer specifications. However, here are some general ranges for load loss values:
- Small transformers (e.g., less than 500 kVA): Load loss can range from 0.5% to 2% of the transformer’s rated power.
- Medium-sized transformers (e.g., 500 kVA to 2000 kVA): Load loss can range from 0.3% to 1.5%.
- Large transformers (e.g., over 2000 kVA): Load loss can be less than 1%.
EverNew transformer stand out for their exceptional performance and efficiency, achieved through the use of premium materials and innovative design features. By combining high-conductivity windings, advanced core materials, and meticulous design optimization, EverNew transformer minimize load losses to set new industry standards for efficiency and reliability.
To learn more about 3 Phase Pad Mounted Transformer Load Loss, please contact our technicians
