3000 KVA Pad Mounted Transformer

Primary Voltage:34.5KV 13.8KV 13.2KV 12.47KV or others
Secondary Voltage:0.6KV 0.48KV 0.415KV 0.4KV
Power Rating: 3000 KVA
Connection Type: Dyn11/Yyno or others
Standards: IEC60076 ANSI/IEEE C57
Certificate: CE UL CSA CCC SAA GOST-R

Evernew Transformer is a professional manufacturer of transformers, supplying over 40,000 units annually worldwide. We have offices in North America, Europe, and other regions, ensuring compliance with IEEE, ANSI, CSA, DOE, NEMA, and other standards. All our transformer products meet local regulatory requirements. We hold various certifications including UL, CSA, MF, and CESI, and provide third-party SGS test reports. For the 3000 KVA Pad Mounted Transformer, we offer customization to fit your project needs. Contact us now to receive specifications, drawings, and a quote for the 3000 KVA Pad Mounted Transformer.

Send Inquiry

Description
Reviews (0)

ZGS13-Z-3000/34.5/13.8

ZGS13-Z-3000/34.5/13.8 is a three phase terminal-type pad mounted transformer with a rated capacity of 3000 KVA. It features primary voltage of 35.5 kV and secondary voltage of 13.8 kV. This transformer, predominantly supplied to North American clients by Evernew Transformers, is customized according to each customer’s specifications, varying in certain parameters and accessories while strictly adhering to CSA C88 and ANSI/IEEE production standards. It is certified by CSA and UL to ensure compliance with safety and performance requirements.

Contact Evernew Transformers

2500 KVA Three Phase Pad Mounted Transformer

3000 KVA Transformer

3000 KVA pad-mounted transformer is designed with a robust structure that integrates key components essential for efficient electrical distribution. At its core, centrally located within the transformer tank, lies the laminated steel core assembly. This core facilitates optimal magnetic flux distribution, minimizing energy losses and ensuring high efficiency in power transmission.

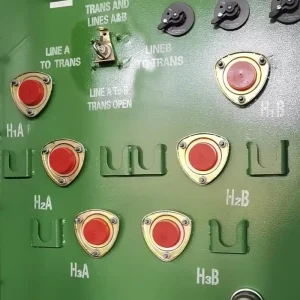

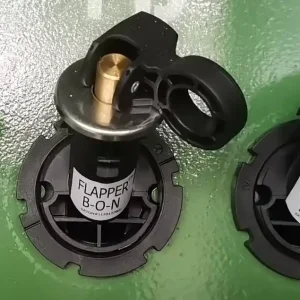

In the upper section, the high-voltage compartment houses critical components including a 5-position tap changer and a 4-position load switch. These elements allow for precise voltage adjustments and effective management of electrical currents. Additionally, the compartment features load break bushing inserts, high-voltage bushing wells, and surge arresters strategically positioned to safeguard against voltage spikes, ensuring uninterrupted power supply and system reliability.

Beneath the high-voltage section, the low-voltage compartment contains essential safety and monitoring features. A pressure relief valve is situated at the top to release excess pressure during abnormal conditions, protecting the transformer from damage. Low-voltage bushings provide secure connections for distributing power, while monitoring instruments such as vacuum pressure, oil temperature, and oil level gauges with terminal block connections enable real-time status monitoring and proactive maintenance. Automatic trip mechanisms further enhance safety by disconnecting power in response to overheating or oil level irregularities, safeguarding the transformer and maintaining operational integrity.

Contact Evernew Transformers!

ZGS13-H-3000/13.8/0.6

ZGS13-H-3000/13.8/0.6 is a ring main unit pad-mounted transformer with a rated capacity of 3000 KVA. It is designed for a one-in-two-out power distribution system, where one line enters the transformer from a power source, one exits from the low-voltage side to another transformer or other electrical equipment. The enclosure is constructed from durable materials such as aluminum alloy, steel plate, and composite board, offering robustness, heat insulation, ventilation, stable performance, corrosion resistance, dustproofing, waterproofing, and protection against small animals.

The transformer is equipped with high-voltage metering components and vacuum circuit breakers. On the low-voltage side, it features a switchgear for incoming lines, reactive power compensation, and outgoing lines. The low-voltage side can adopt either panel-type or cabinet-type structures to accommodate various power supply needs, including distribution, lighting, reactive power compensation, and energy metering. The main switch generally uses standard load switches or intelligent circuit breakers, providing flexibility in installation and ease of operation, suitable for diverse industrial and commercial applications.

Get Quote Now!

Learn more about Pad Type Transformer：2500 KVA Three Phase Pad Mounted Transformer

12.47 KV 3000 KVA Transformer

Introducing the EverNew Transformer, a robust pad-mounted transformer filled with FR3 vegetable oil at 12.47 KV and 3000 KVA, designed for efficient electrical distribution. FR3 oil enhances fire safety and environmental sustainability, prolonging the transformer’s operational lifespan.

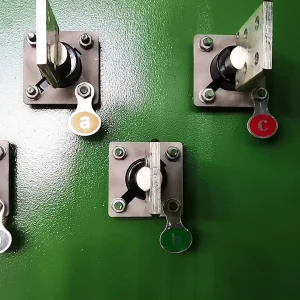

This transformer boasts carefully chosen winding materials for dependable performance. It features 6 high-voltage bushing wells and 3 two-hole low-voltage bushings, ensuring secure electrical connections. In case of abnormal conditions, a pressure relief valve automatically releases excess pressure, complemented by 3 ground steel pads for stability and a vacuum pressure gauge for accurate monitoring.

Additionally, a top filling valve facilitates convenient maintenance access. Perfect for industrial and commercial use, the EverNew Transformer blends advanced engineering with eco-friendly attributes to effectively and sustainably meet demanding power distribution needs.

Get Quote Now!

3000 KVA Pad Mounted Transofrme Dimensions

At EverNew Transformers, we specialize in custom design blueprints for 3000 kVA transformers, precisely tailored to meet each customer’s specific requirements. These detailed plans are carefully developed through in-depth consultation to ensure they are a perfect fit for industrial, commercial or infrastructure

Our design process integrates key elements such as power rating, primary voltage range (6 kV to 34.5 kV), insulation materials, protection features, and optional integration. We prioritize the use of high-efficiency silicon steel cores and copper windings for their excellent conductivity

EverNew Transformer’ team of experts provides 3000 kVA transformer design drawings, ensuring seamless installation and improved operational efficiency, helping customers succeed and thrive in their industries. Contact us today to learn how our custom transformer solutions can effectively meet your unique power distribution needs.

Get Quote Now!

Learn about other capacity pad transformer：1500 Kva Pad Mounted Transformer

3000 KVA Transformer Price and Size

Evernew Transformer Conventional 3000 KVA Pad Mounted Transformer Size, Weight and Price Reference, the size of the transformer is approximately 3070 mm (length) x 1650 mm (width) x 2330 mm (height). Its body weight is approximately 8845 kg, and the total weight including oil weight is approximately 9865 kg. As for the price, it is usually between $70,000 and $120,000, depending on the material selection (such as copper windings), rated voltage and possible additional features (such as monitoring systems). These estimates provide a rough reference, and the actual size, weight and price may vary depending on individual customization requirements. It is recommended to contact Evernew Transformer when choosing a transformer. As the top transformer manufacturer in China, we provide you with detailed quotations and product specifications.

3000 KVA 3 Phase Pad Mounted Transformer Main Parts

Component Name	Quantity	Description
Hinged Doors	2	Doors with hinges for access and maintenance.
Lifting Lugs	4	Attachments for lifting and handling the transformer.
Top Cover	1	Covering the top of the transformer for protection.
Door Handle	1	Handle for opening and closing the transformer doors.
Filler Plug	1	Plug used to fill or seal openings in the transformer.
High Voltage Bushing Wells	6	Wells for high-voltage bushings, providing electrical insulation.
Low Voltage Bushings (2-hole)	3	Bushings for low-voltage connections with two holes.
Terminal Connectors	1	Connectors for electrical terminals and wiring.
Pressure Relief Valve	1	Valve to relieve excess pressure inside the transformer.
Ground Steel Mat	3	Mat made of steel for grounding the transformer.
Vacuum Pressure Gauge	1	Gauge for monitoring vacuum pressure inside the transformer.
Upper Inlet Valve	1	Valve for oil inlet at the upper part of the transformer.
Parking Bracket Support	5	Supports for parking or securing the transformer.
Elbow Arresters	3	Arresters to prevent arcing in elbow connections.
Drain Valve with Sampler	1	Valve equipped with a sampler for draining and sampling oil.
Oil Level Gauge	1	Gauge to monitor the level of oil inside the transformer.
Nameplate (Stainless Steel)	1	Stainless steel plate with transformer specifications.
Pressure Relief Device	1	Device for relieving pressure during abnormal conditions.
Five-bolt Arrangement	3	Arrangement of bolts for securing transformer components.
Load Break Insert for Circuit Breaker	6	Insert for load breaking within the circuit breaker.
Flexible Barrier	1	Barrier providing flexibility between high and low voltage.
Four-position Load Switch	1	Switch with four positions for controlling loads.

3000 KVA Pad Mounted Transformer Main Parameters

Rated Capacity KVA	High Voltage KV	Low Voltage KV	Tapping Range&Vector symbol	Loss(W)
Rated Capacity KVA	High Voltage KV	Low Voltage KV	Tapping Range&Vector symbol	No-load	On-load
30KVA	6.3KV 7.2KV 7.62KV 8.6KV 12.47KV 13.2KV 13.8KV 19.92KV 23KV 34.5KV 35KV To be requested by customers	220V 380V 415V 440V 480V 600V	±5 （±2*2.5）Yyn0 Dyn11	110	500
63KVA				200	1040
75KVA				180	1250
125KVA				220	1700
150KVA				280	2200
225KVA				400	3050
300KVA				480	3650
500KVA				680	5100
750KVA				980	7500
1000KVA				1150	10300
1500KVA				1640	14500
2000KVA				2160	20645
2500KVA				2680	27786
3000KVA				3300	30300
3750KVA				4125	37875

3000 KVA Pad Mounted Transformer FAQs

Q: Are you a transformer manufacturer?

A: Yes, we are a transformer manufacturer in China and 3000 KVA transformer are manufactured in our Jiangsu transformer factory.

Q: Do you offer custom options for 3000 KVA transformer?

A: Yes, we specialize in customizing 3000 KVA transformer to meet specific customer needs, including voltage ratings, insulation materials, and additional features.

Q: What is the typical lead time for a custom 3000 KVA transformer?

A: Lead times vary based on customization complexity and production schedule, typically within 6 to 12 weeks after order confirmation.

Q: How are 3000 KVA transformer shipped to the installation site?

A: Transformers are securely packaged and shipped via reliable means, such as road or sea, to ensure safe delivery worldwide.

Q: What kind of after-sales support do you provide?

A: We provide comprehensive after-sales support, including technical assistance, troubleshooting, and warranty services, ensuring customer satisfaction throughout the lifecycle of the transformer.

Q: What maintenance is required for a 3000 KVA pedestal mounted transformer?

A: Regular maintenance includes monitoring oil levels, checking for temperature fluctuations, and periodic inspections as per manufacturer guidelines to optimize performance and lifespan.

Q: What is the pricing for your 3000 KVA transformer?

A: Pricing for our 3000 KVA transformer depends on customization options, selected materials (such as copper windings), and additional features required. For a detailed quote, please contact our sales team.
