Step Down Power Transformer: Definition, Working Principle, Types, Applications and Manufacturer Guide
Electric power systems require different voltage levels for generation, transmission, distribution, and end-user applications. A transformador reductor de potencia plays a critical role in reducing high voltage electricity into lower voltage levels that can be safely used by industrial equipment, commercial buildings, and residential electrical systems.
As electricity demand continues to grow worldwide, reliable voltage conversion equipment has become essential for power grids, renewable energy systems, manufacturing plants, data centers, and infrastructure projects.
EverNew Transformer is a professional step down transformer manufacturer and supplier in China, providing customized transformer solutions from low voltage applications to high voltage power distribution systems. Our products are designed according to international standards including IEC, ANSI/IEEE, CSA, and other regional requirements.
What Is a Step Down Power Transformer?
A transformador reductor de potencia is an electrical device that converts a higher voltage into a lower voltage while maintaining the same frequency. It transfers electrical energy between circuits through electromagnetic induction.
In simple terms:
High Voltage → Step Down Power Transformer → Lower Voltage
For example:
- 33kV / 11kV medium voltage input
- Converted to 400V / 415V / 480V low voltage output
This allows electricity transmitted at high voltage over long distances to be safely distributed and used by electrical equipment.
A step down transformer normally contains:
- High voltage winding
- Low voltage winding
- Núcleo magnético
- Transformer tank or enclosure
- Insulation system
- Sistema de refrigeración
- Accesorios de protección
The voltage reduction is achieved by designing the primary and secondary windings with different numbers of turns.
How Does a Step Down Power Transformer Work?
A step down power transformer operates based on Faraday’s law of electromagnetic induction.
The high voltage AC supply enters the primary winding and creates an alternating magnetic flux inside the transformer core.
This magnetic field induces voltage in the secondary winding.
Because the secondary winding has fewer turns than the primary winding, the output voltage is reduced.
The basic relationship is:
Voltage ratio = Primary winding turns / Secondary winding turns
For example:
A transformer with:
- Primary voltage: 11,000V
- Secondary voltage: 400V
will reduce medium voltage electricity into low voltage power suitable for industrial loads.
=
Main Types of Step Down Power Transformers
Depending on application requirements, step down power transformers can be divided into several major categories.
1. Oil Immersed Step Down Power Transformer
Transformadores sumergidos en aceite are the most widely used type in utility and industrial power distribution.
The transformer core and windings are installed inside a tank filled with insulating oil. The transformer oil provides:
- Electrical insulation
- Heat dissipation
- Protection of internal components
- Improved service life
Advantages of Oil Immersed Transformers
- High efficiency
- Excellent cooling performance
- Suitable for outdoor installation
- Large power capacity
- Long operating lifespan
Aplicaciones típicas:
- Electrical substations
- Power plants
- Fábricas industriales
- Proyectos mineros
- Plantas de energía renovable
- Redes de distribución de servicios públicos
EverNew supplies oil immersed step down transformers with capacities ranging from distribution transformers to large power transformers.

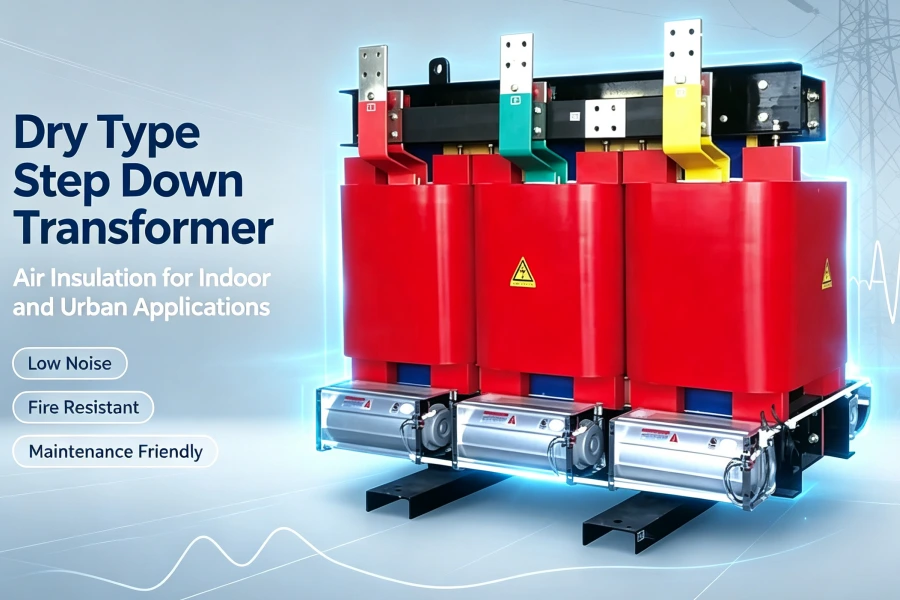

2. Dry Type Step Down Power Transformer
A dry type step down transformer uses air or resin insulation instead of transformer oil.
The most common design is:
- Transformador de resina moldeada
- Vacuum pressure impregnated transformer
Dry type transformers are preferred where environmental safety and fire protection are important.
Advantages of Dry Type Transformers
- No hay riesgo de fugas de aceite
- Environmentally friendly
- Menores requisitos de mantenimiento
- Apto para instalación en interiores
- Excellent fire resistance
Common applications:
- Edificios comerciales
- Hospitales
- Aeropuertos
- Centros de datos
- Shopping centers
- Instalaciones subterráneas

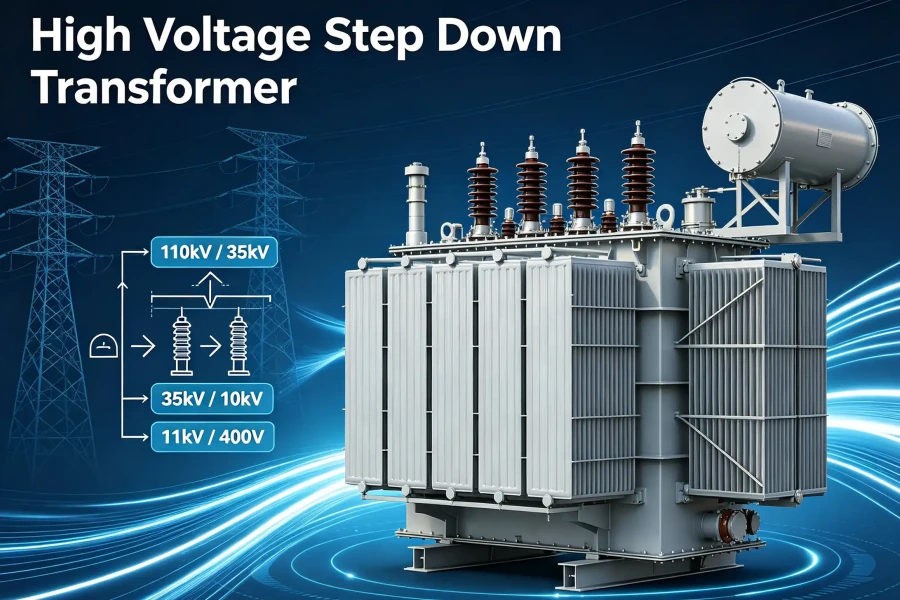

3. High Voltage Step Down Transformer
A high voltage step down transformer is designed to reduce transmission or distribution voltage levels.
Typical voltage ratings include:
- 110kV / 35kV
- 66kV / 11kV
- 35kV / 10kV
- 20kV / 400V
- 11kV / 400V
These transformers are widely used in:
- Subestaciones eléctricas
- Sistemas de energía industrial
- Parques solares
- Wind power projects
- Large manufacturing facilities

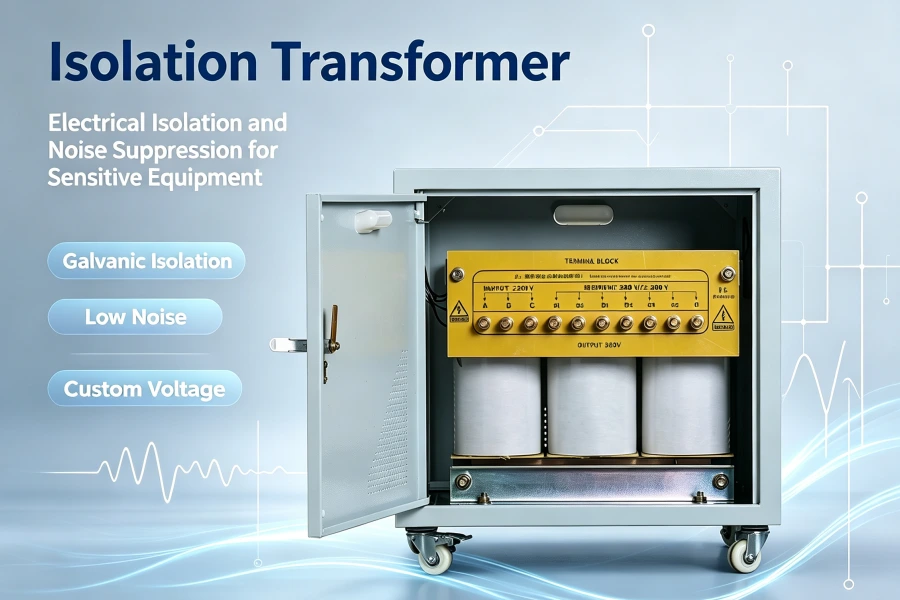

4. Industrial Step Down Isolation Transformers
Industrial facilities require stable and reliable power conversion.
En industrial step down Isolation transformer provides suitable voltage levels for:
- Motores
- Production lines
- Welding equipment
- CNC machines
- Sistemas de automatización
- Heavy industrial equipment
Industrial transformers can be customized according to:
- Voltage requirements
- Frecuencia
- Load characteristics
- Harmonic conditions
- Installation environment
Read More：2500 kVA Transformer: Complete Guide for Industrial Power Distribution Projects

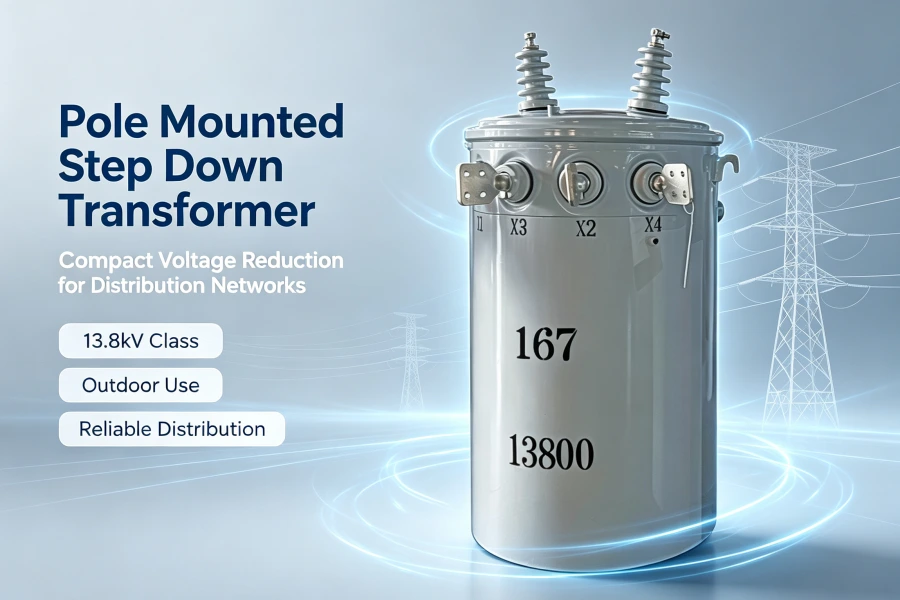

5. Pole Mounted Step Down Transformer
A pole mounted step down transformer is installed on utility poles to reduce medium voltage electricity to low voltage levels for residential, commercial, and rural power distribution.
These transformers are typically designed for overhead distribution systems and are widely used in areas where space-saving and cost-effective installation are required.
Advantages of Pole Mounted Transformers
- Compact design and easy installation
- Suitable for overhead power distribution
- Reliable operation in outdoor environments
- Requisitos de mantenimiento mínimos
- Cost-effective solution for distribution networks
Aplicaciones típicas:
- Distribución de energía residencial
- Rural electrification projects
- Redes de distribución de servicios públicos
- Small commercial facilities
- Remote power supply systems
- Overhead distribution lines
EverNew supplies pole mounted step down transformers with various voltage ratings and capacities, including single phase and three phase designs, customized according to utility standards such as ANSI, IEEE, IEC, and local requirements.

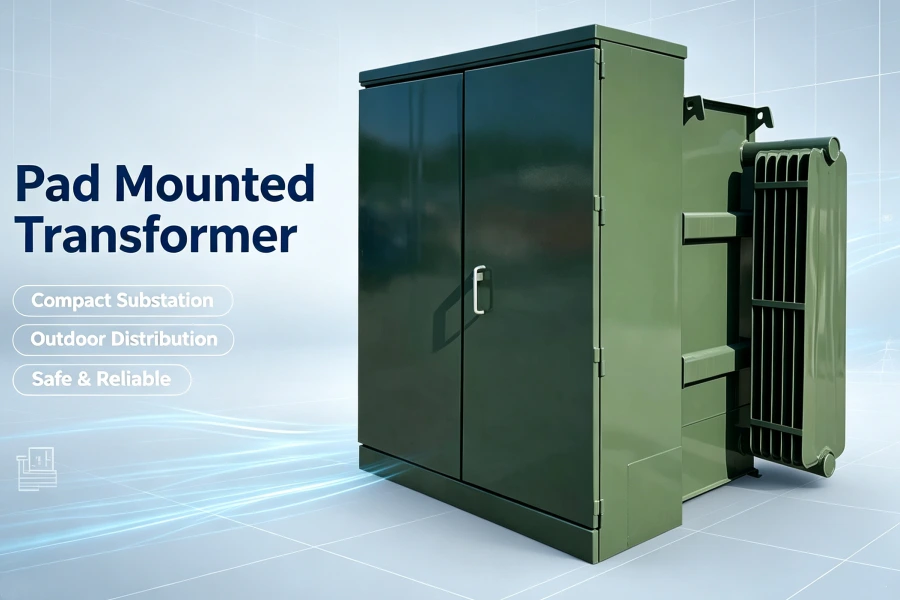

6. Pad Mounted Step Down Transformer
A pad mounted step down transformer is a ground-mounted transformer designed for underground power distribution systems.
The transformer is installed on a concrete pad and enclosed in a secure cabinet, providing safe and reliable voltage conversion for urban and industrial applications.
Pad mounted transformers are commonly used where underground cables are preferred for safety, aesthetics, and reliability.
Advantages of Pad Mounted Transformers
- Safe and secure enclosed design
- Suitable for underground distribution systems
- Reduced visual impact in urban areas
- High reliability and weather resistance
- Available with loop feed and radial feed configurations
Aplicaciones típicas:
- Comunidades residenciales
- Complejos comerciales
- Industrial parks
- Solar and renewable energy projects
- Underground utility networks
- Proyectos de infraestructura
EverNew manufactures pad mounted step down transformers with oil immersed designs, copper or aluminum windings, FR3 vegetable oil options, and configurations meeting ANSI, IEEE, CSA, IEC, and utility specifications.
Step Down Power Transformer Applications
1. Power Distribution Systems
Electric utilities generate electricity at high voltage levels and reduce voltage through step down transformers before supplying customers.
Typical process:
Power Generation
↓
High Voltage Transmission
↓
Transformador reductor
↓
Industrial / Commercial / Residential Users
2. Renewable Energy Projects
Solar and wind farms require step down transformers to connect renewable power generation systems to electrical grids.
Applications include:
- Solar transformer substations
- Wind turbine transformer systems
- Energy storage facilities
3. Manufacturing Plants
Factories require reliable voltage conversion for production equipment.
Typical industries:
- Automotive manufacturing
- Steel production
- Chemical plants
- Food processing
- Semiconductor factories
4. Commercial Buildings
Step down transformers provide safe power distribution for:
- Edificios de oficinas
- Hotels
- Centros comerciales
- Aeropuertos
- Centros de datos
Step Down Transformer vs Step Up Transformer
Both transformers operate using the same electromagnetic principle, but they are designed for different purposes.
How to Select the Right Step Down Power Transformer?
Choosing the correct transformer requires evaluating several technical parameters.
1. Rated Power Capacity
Transformer capacity is measured in:
- kVA
- MVA
Common industrial ratings:
- 100 kVA
- 250 kVA
- 500 kVA
- 1000 kVA
- 2500 kVA
- 5000 kVA and above
The transformer rating should match the actual load demand with appropriate safety margin.
2. Input and Output Voltage
The transformer voltage ratio must match the electrical system.
Ejemplos:
- 13.8kV to 480V
- 11kV to 400V
- 6.6kV to 415V
3. Tipo de transformador
Select according to installation conditions:
4. Applicable Standards
International projects may require compliance with:
- IEC 60076
- Normas ANSI/IEEE
- Normas de la CSA
- DOE efficiency requirements
- Regional electrical regulations
EverNew Transformer manufactures transformers according to different international market requirements.
Why Choose EverNew as Your Step Down Transformer Supplier?
EverNew Transformer is one of China’s professional power transformer manufacturers, specializing in:
- Step down power transformers
- Transformadores de distribución
- Transformadores de tipo seco
- Transformadores sumergidos en aceite
- Isolation transformers
- Transformadores montados en pedestal
- Transformadores de potencia
Our Manufacturing Advantages
More Than 30 Years Transformer Experience
With decades of transformer manufacturing experience, EverNew provides reliable transformer solutions for global customers.
Complete Manufacturing Capability
Our production covers:
- Transformer design
- Core manufacturing
- Coil winding
- Assembly
- Pruebas
- Final inspection
Wide Product Range
We supply transformers from:
- 15 kVA a 500 MVA
- Low voltage to 500kV class
Certificaciones internacionales
Our products can meet:
- IEC
- ANSI
- IEEE
- CSA
- CE
- UL requirements
Custom Step Down Power Transformer Solutions
Every electrical project has different requirements.
EverNew provides customized transformer solutions including:
- Voltage customization
- Frequency customization
- Copper or aluminum winding
- Sistemas especiales de enfriamiento
- Outdoor enclosure
- High efficiency design
- Special environmental conditions
Our engineering team supports customers from technical design to final delivery.
Global Supply of Step Down Power Transformers
As a China-based transformer manufacturer, EverNew supplies step down transformers worldwide.
Our customers include:
- Electrical contractors
- EPC companies
- Empresas de servicios públicos
- Industrial manufacturers
- Empresas de desarrollo de energía renovable
- Government infrastructure projects
Ofrecemos:
- Factory direct pricing
- Soporte técnico
- Customized production
- Documentación de exportación
- Global shipping solutions
Frequently Asked Questions About Step Down Power Transformers
What is the main purpose of a step down power transformer?
The main purpose is to reduce high voltage electricity into lower voltage levels suitable for electrical equipment and distribution systems.
What is the difference between a distribution transformer and a step down transformer?
A distribution transformer is a type of step down transformer commonly used in power distribution networks. Step down transformers can also refer to industrial and specialized transformers.
How long does a step down transformer last?
A properly designed and maintained transformer can typically operate for several decades depending on loading conditions, environment, and maintenance.
Can EverNew manufacture customized step down transformers?
Yes. EverNew provides customized transformer designs based on voltage, capacity, standards, and installation requirements.
Conclusión
A transformador reductor de potencia is an essential component in modern electrical systems, ensuring electricity can be safely converted from high voltage transmission levels to usable power levels.
Selecting a reliable transformer manufacturer is critical for achieving:
- Stable operation
- High efficiency
- Larga vida útil
- Reduced maintenance costs
EverNew Transformer is a trusted China step down power transformer manufacturer and supplier, delivering high-quality transformer solutions for industrial, commercial, utility, and renewable energy applications worldwide.
Contact EverNew Transformer today for a customized step down power transformer quotation.
