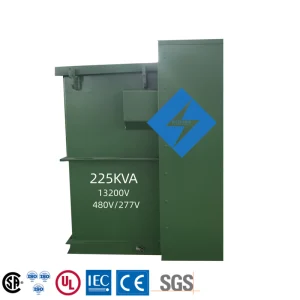

The 225 KVA transformer and 252 KVA transformer from Ny transformator, one of the top transformer manufacturers in China, are engineered to deliver reliable, efficient, and safe power distribution. These pad mounted liquid-immersed transformers are specifically designed for various applications, including outdoor environments, utilities, and industrial operations, ensuring stable voltage supply, reduced operational costs, and extended service life. The 225 KVA transformer meets multiple international standards to accommodate diverse installation environments.
Capacity and Temperature Rise
The 225 KVA transformer has a rated power of 225 KVA (55°C rise) and 252 KVA (65°C rise), ensuring high efficiency under load and minimizing thermal losses. The lower temperature rise contributes to the longevity of the 225 KVA transformer and enhances performance under heavy load conditions. It is ideal for environments requiring prolonged high-capacity operation.
Efficient Cooling System
This transformer utilizes a KNAN (Kerosene/Natural Air/Natural Convection) cooling system that includes 126 gallons of biodegradable cooling fluid, such as FR3 fluid. Compared to conventional mineral oil, FR3 fluid exhibits excellent thermal performance, allowing the 225 KVA transformer to handle loads of up to 120% capacity while ensuring safety and environmental compliance. Its non-toxic nature makes it an eco-friendly choice for sustainable energy systems.
Electrical Configuration and Operation
- Primær spænding: 13200V, Three-phase Delta
- Sekundær spænding: 480Y/277, Three-phase Wye-N configuration
- Impedance Range: 1.2% – 6.0%, with typical impedance values between 3.10% and 5.75%
- Load Tap Changer (LTC): Equipped with a four-position load tap changer that allows for seamless transition between A phase, B phase, or a combination of A + B phase bus, providing flexibility and minimizing disruptions during operation.
Advanced Safety Features
Safety is a top priority for Evernew Transformer. This 225 KVA transformer incorporates multiple safety mechanisms, including:
- Arc Suppression Devices: Prevents overvoltage and surges.
- High Voltage Fuses: Including partial-range current-limiting fuses to protect against overloads or short circuits.
- Automatic Pressure Release Valve (PRV): Releases built-up pressure after activation to prevent internal damage.
Læs mere：Hvad er en stolpemonteret transformator?
Durable Enclosure and Mounting Design
The 225 KVA transformer enclosure is made of 304 stainless steel, offering excellent corrosion, abrasion, and environmental resistance. It complies with NEMA 3R ratings and features weatherproof capabilities, making it suitable for harsh and moderate climates. The high/low voltage compartment design enhances safety during maintenance, preventing unauthorized access to the high-voltage compartment.
User-Friendly Design and Maintenance
The 225 KVA transformer is designed with user convenience in mind, featuring:
- Analog Gauges: For quick monitoring of oil levels, temperature, and pressure.
- Internal Operating Handles: Allow for safe switching operations within the high-voltage compartment.
- Front Access Maintenance Door: Equipped with a locking mechanism to ensure only authorized personnel can access the equipment.
Overholdelse af internationale standarder
The 225 / 252 KVA pad-monteret transformer complies with international standards such as ANSI/IEEE and CSA. It meets DOE 2016 efficiency requirements and is certified through ASTM D3487 and ASTM D6871, ensuring reliable performance in industrial, commercial, and utility applications. These certifications guarantee that Evernew Transformer adheres to stringent global quality and performance standards.
Anvendelser
- Offentlig infrastruktur: Ideal for powering critical infrastructures such as public lighting and traffic signals.
- Kommercielle bygninger: Ensures a stable and secure power supply for office buildings, shopping malls, and business centers.
- Industrielle faciliteter: Meets the rigorous electrical demands of heavy machinery and large industrial plants.
- Data Centers: Provides continuous, stable power for sensitive IT infrastructure, preventing power fluctuations and ensuring uptime.
- Residential Communities: Suitable for high-density residential areas, ensuring homes receive stable and reliable power.
- Renewable Energy Systems: Perfect for distributing power in solar and wind installations, offering eco-friendly and reliable power solutions.
Operating Conditions and Environmental Resilience
The 225 KVA transformer is designed to operate within a temperature range of -40°C to +40°C, maintaining reliable performance even at elevations exceeding 3300 feet (1000 meters). Its seismic design ensures safe operation in earthquake-prone areas, broadening its availability in various environments and geographic regions.
Size and Installation Requirements
Measuring 61 inches wide x 49 inches deep x 69 inches high, this unit has a compact footprint, allowing for easy installation on concrete pads. The 225 KVA transformer can be equipped with optional rollers or slide rails for convenient transportation and installation in tight spaces. Its compact pad mounted design ensures seamless integration into any landscape while facilitating routine maintenance.
Long-term Reliability and Performance
This 225 / 252 KVA trefaset padmonteret transformer offers decades of reliable performance. Its robust construction and advanced safety mechanisms contribute to lower total ownership costs, reduced maintenance needs, and an extended service life. Evernew Transformer’s commitment to quality ensures this 225 KVA transformer delivers stable power delivery with minimal downtime, making it the ideal solution for customers seeking a reliable, efficient, and environmentally friendly transformer.
Contact Evernew Transformer today for inquiries or to explore customization options that suit your specific needs. Experience the benefits of our premium 225 KVA transformers available at factory wholesale prices.
