300 KVA Three Phase Pad Mounted Transformer

300 KVA Three Phase Pad Mounted Transformer

Primary Voltage:6.3KV/7.2KV/11KV/13.2KV/13.8KV/34.5KV Or Others
Secondary Voltage:0.12KV-0.66KV Or Others
CONNECTION TYPE: Dyn11/YNyn0 or others
Standards: ANSI/IEEE, CSA/CAN, DOE
Power Rating: 300 KVA
Certificate: UL, cUL, CSA, SGS

300KVA three phase pad mounted transformer are widely used in industrial, commercial and rural utility power systems in North and South America. Evernew Transformer manufactures these transformers in accordance with international standards such as ANSI, CSA, DOE, NEMA and IEEE, and is UL, cUL and CSA certified. Evernew Transformers has been producing a variety of transformers for more than 30 years and has accumulated rich manufacturing experience. We are committed to providing high quality and compliant transformer products to global markets such as the United States, Canada, Brazil, Colombia, etc. We are always customer-oriented to ensure that each 300 KVA transformer meets the highest performance and safety standards.

Send Inquiry

Description
Reviews (0)

300 KVA Three Mounted Pad Transformer Structure and Design Features

300 KVA Transformer Sealed Metal Housing

300 KVA 3 phase pad mounted transformer usually use sealed metal housings, such as iron or aluminum alloy (customizable upon request), which can effectively prevent the external environment from corroding the internal electrical components, such as rain, dust and corrosive substances.

300 KVA Transformer Ground Installation

300 KVA Ground Transformer is designed to be installed directly on the ground or on concrete pads, which makes them particularly suitable for outdoor or space-limited places.

300 KVA Transformer Compact and Lightweight

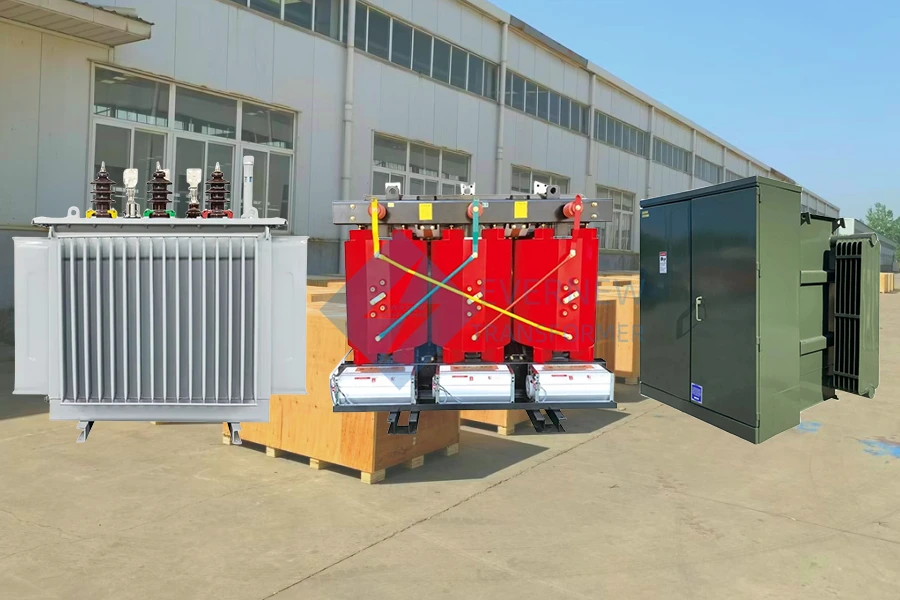

Compared with traditional box transformers, 300 KVA pad transformers are usually lighter and more compact, making them easier to transport, install and maintain.

300 kva Pad Mounted Transformer Diagram

At Evernew, each 300 KVA pad mounted transformer is customized to meet the specific requirements of your project. We provide detailed Pad Mounted Transformer Diagrams that showcase the unique features and specifications tailored to your needs.

Custom Features:

Specific Requirements: Evernew transformer can be designed to accommodate various voltage levels, load capacities, and environmental conditions based on your project specifications.
Key Components: Each transformer includes high quality components such as premium grade copper or aluminum windings, advanced insulating materials, and robust steel enclosures to ensure durability and performance.
Dimensions: We offer various size configurations to fit your installation space, optimizing footprint while maintaining efficiency.
Materials: Our transformers are constructed using high-strength materials designed to withstand harsh weather conditions and ensure longevity, including corrosion-resistant coatings for outdoor applications.

Diagram Details: The 300 KVA Pad Mounted Transformer Diagram provides essential information, including:

Electrical Connections: Clear layouts of primary and secondary connections for easy installation and maintenance.
Component Labels: Identification of key components, including bushings, grounding systems, and protective devices.
Ventilation and Cooling: Design features that ensure proper airflow and thermal management to prevent overheating.

With Evernew’s commitment to quality and customization, our 300 KVA pad mounted transformers are the ideal solution for a wide range of applications, ensuring reliability and efficiency for your electrical infrastructure.

Contact Evernew Transformers Now to Learn More About Pad Mounted Transformer Diagrams.

300 kva Three Phase Pad Mounted Transformer Technical Data

Evernew 300 KVA transformer is designed to support primary voltage levels ranging from 6 kV to 34.5 kV, making it highly versatile for various applications. It offers secondary voltage options from 0.12 kV to 0.6 kV, ensuring compatibility with diverse electrical systems. With a no-load loss of just 0.8 kW and an on-load loss of 3.65 kW, this transformer is engineered for efficiency and reliability.

Applications: This transformer is suitable for commercial and industrial environments, including:

Manufacturing Plants: Providing stable power for machinery and production lines.
Data Centers: Ensuring uninterrupted power supply for critical IT infrastructure.
Renewable Energy Systems: Supporting wind and solar power installations with reliable voltage transformation.
Residential Developments: Serving as a reliable power source for new housing projects.

Choose the Evernew 300 KVA transformer for efficient energy solutions tailored to your needs.

Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	Loss (W)
Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)
75KVA	34.5KV/ 22.00KV 19.92KV/ 13.8KV/ 13.2KV/ 12.47KV/ 7.62KV/ 7.2KV 6.0KV or others	120V 240V 277V 347V 400V 480V 600v	180	1250
112.5KVA			200	1500
150KVA			280	2200
225KVA			400	3050
300KVA			480	3650
500KVA			680	5100
750KVA			980	7500
1000KVA			1150	10300
1200KVA			1320	12120
1500KVA			1640	14500
2000KVA			2160	20645
2500KVA			2680	27786
3000KVA			3300	30300
3750KVA			4125	37875

300 kva Three Phase Pad Mounted Transformer Key Attributes

Place of Origin	China
Brand Name	Evernew Transformer
Product Name	Oil Type Three Phase Transformer Pad Mounted
Coil Number	2 winding
Coil Structure	TOROIDAL
Product name	Pad Mounted Transformer
Type	Loop Feed
Rated capacity	300 KVA
Application	Mining
Standard	DOE/IEC60076/IEEE/ANSI
IEEE Standards	IEEE C57.12.00
Certification	UL Listed
Efficiency	DOE 2016 Standard Compliant
Temperature Rise	65°C, 65/75°C, 75°C
Frequency	50/60Hz
Material	Aluminum/Copper
Cooling System	ONAN / KNAN
Feed Type	Loop Feed / Radial Feed
Primary voltage	6kv-34.5kv or Customized
Secondary voltage	0.12KV-0.6KV or Customized
Winding Configuration	Delta – Wye / Wye – Wye/ Delta – Delta/ Wye – Delta
Tapping Range	±2 x 2.5%
Impedance	4.35-5.75%
Vector Group	Dyn11/Yyn0/Yd11/YNd11/Dyn5
Type of Installation	Indoor / Outdoor
Mounting	Pad-Mounted
Warranty	24 Months
Customized	Accept
